Drawing Christmas Hat With Illustrator

� 作者来源:Nick La/ndesign-studio 编辑整理�PhotoShop资源� 更新时间� 2006-07-22 录入� 黄叶飞扬 �





按此在新窗口浏览图片

In my previous tutorial I showed how to make a Christmas tree, this tutorial shows you how draw a furry Christmas hat.

Version: Illustrator 9+

按此在新窗口浏览图片Download Source File (.ai)


1. Hat

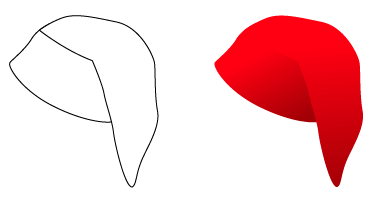

Start your hat by drawing 2 basic paths and filling them with Linear gradient (red to darker-red).

按此在新窗口浏览图片

2. Shadow

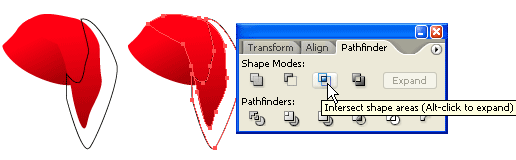

Make a path (shadow path) like the image on the left. Select the top part of the hat, Copy & Paste in Front (Ctrl+F). Now, select the copied path and the shadow path, hold down Alt key and select Intersect shape areas in Pathfinder pallate.

按此在新窗口浏览图片

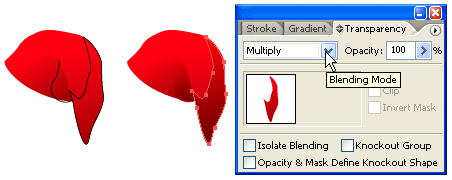

Your path should looks like the image on the left. Repeat this step to make another shadow path for the bottom part of the hat. Then fill these 2 shadow paths with Linear gradient (red to darker-red), in your Transparency pallate, select Multiply.

按此在新窗口浏览图片

3. Fur

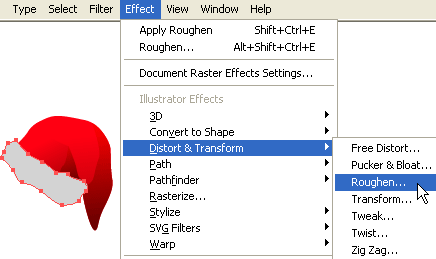

With your Pen Tool, roughly draw a path like the image on the left and fill it with grey color. Go to Effect > Distort & Transform > Roughen

按此在新窗口浏览图片

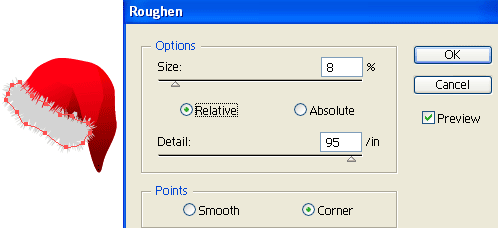

Roughen Options
In your Roughen window, enter the following setting: Size=8%, Detail=95/in, select Corner points. You may click on the Preview check box to preview your result.

按此在新窗口浏览图片

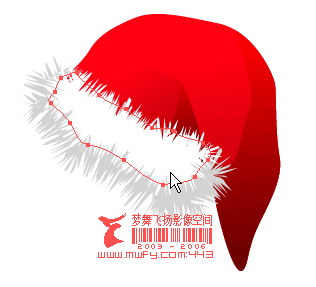

Make a copy of the grey path by holding down Alt + drag (you may use Copy & Paste if you like) and fill it with white. Scale it down a bit and bring it up slightly above the grey path. Select the top part of the hat and its shadow, bring them to front by Object > Arrange > Bring to Front (Ctrl+Shift+]).

按此在新窗口浏览图片

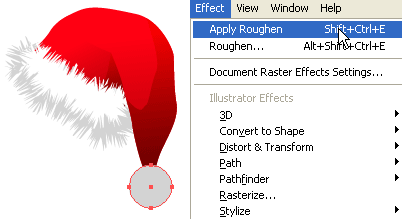

Use the Ellipse Tool to make the circle and repeat the previous step to make the furry ball.

按此在新窗口浏览图片

Final

Your final illustration should looks like the image shown below.

按此在新窗口浏览图片

Have Fun

Now, have fun with your Christmas hat!

按此在新窗口浏览图片
